PRGH35 linear motion lm guideways roller slide rails linear bearing slide block

Short Description:

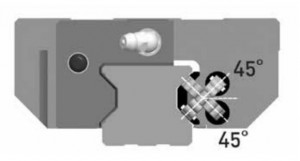

Roller lm guideways adopts roller as rolling elements instead of steel balls, can offer super high rigidity and very high load capacities, roller bearing slide rails are designed with 45 degree angle of contact which produces small elastic deformation during super high load, bears equal load in all directions and same super high rigidity. So PRG roller guideways can reach super high precision requirements and longer service life.


  • Brand: PYG
  • Model Size: 35mm
  • Rail Material: S55C
  • Block Material: 20 CRmo
  • Sample: available
  • Delivery time: 5-15 days
  • Precision level: C , H, P, SP, UP
  • Product Detail

    Product Tags

    product description

    Roller Linear Guide Rail

    Roller lm guideways adopts roller as rolling elements instead of steel balls, can offer super high rigidity and very high load capacities, roller bearing slide rails are designed with 45 degree angle of contact which produces small elastic deformation during super high load, bears equal load in all directions and same super high rigidity. So PRG roller guideways can reach super high precision requirements and longer service life.

    img-3

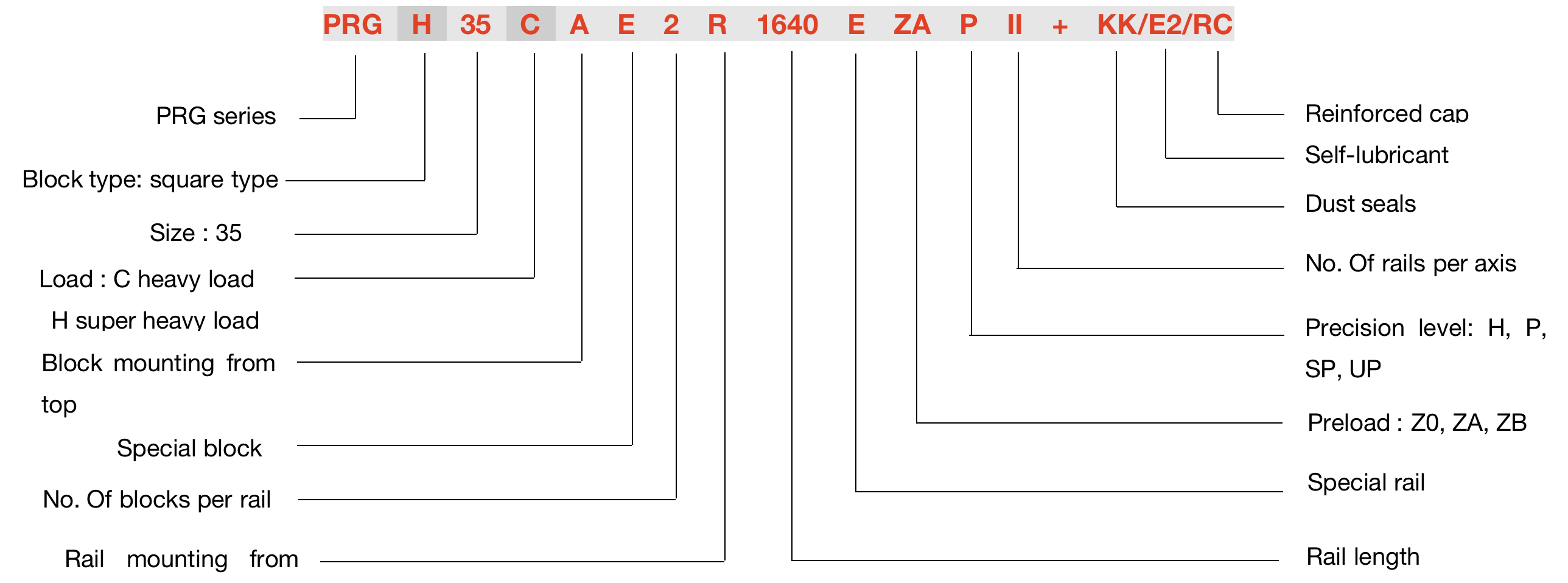

    For PRGH-CA / PRGH-HA series linear roller slides, the definition of each code as follows:

    Take size 35 for example:

    linear guideway

    PRGH-CA / PRGH-HA block and rail type

    Type

    Model

    Block Shape

    Height (mm)

    Rail Mounting from Top

    Rail Length (mm)

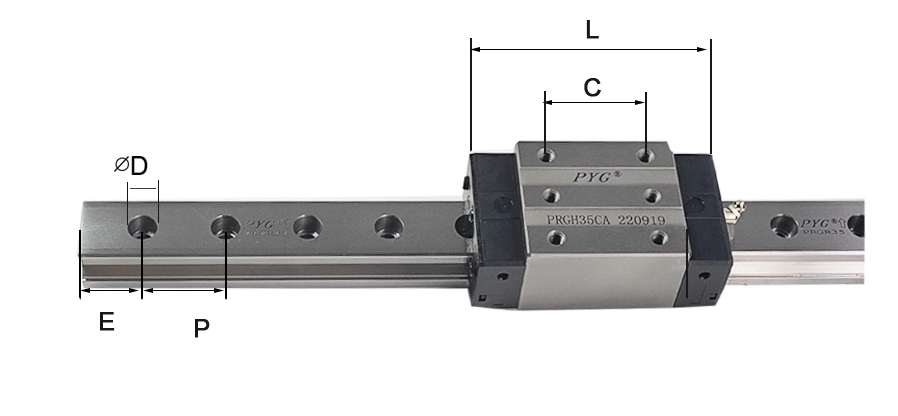

    Square block PRGH-CAPRGH-HA img-5

    28

    90

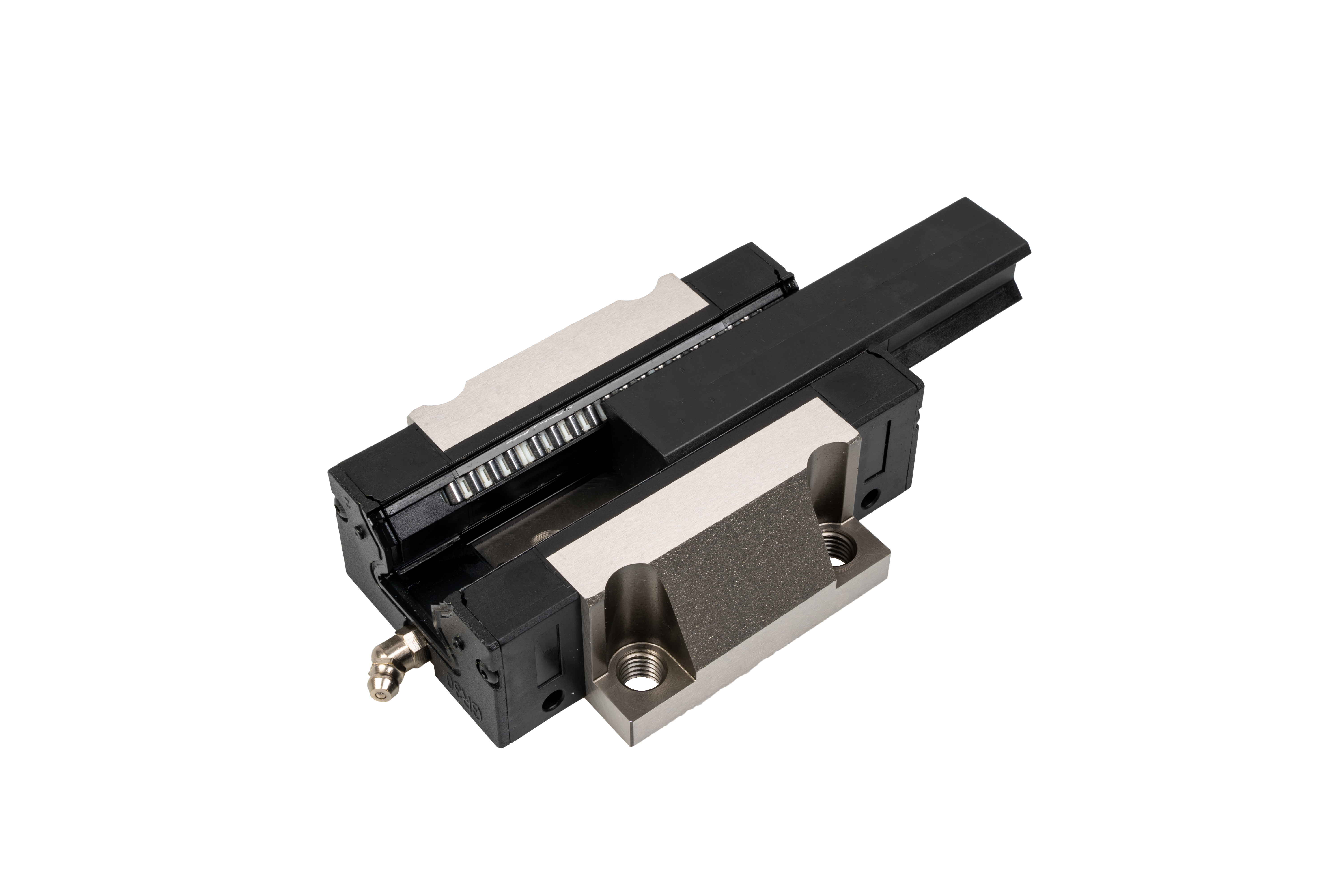

    img-6

     100

    4000

    Application

    • Automation systeml Heavy transportation equipment
    • CNC processing machine
    • Heavy cutting machines
    • CNC Grinding machinesl Injection molding machine
    • Electric discharge machines
    • Big gantry machines

    Features

    PYG® brand linear motion details

    linear block

    linear bearing slide block

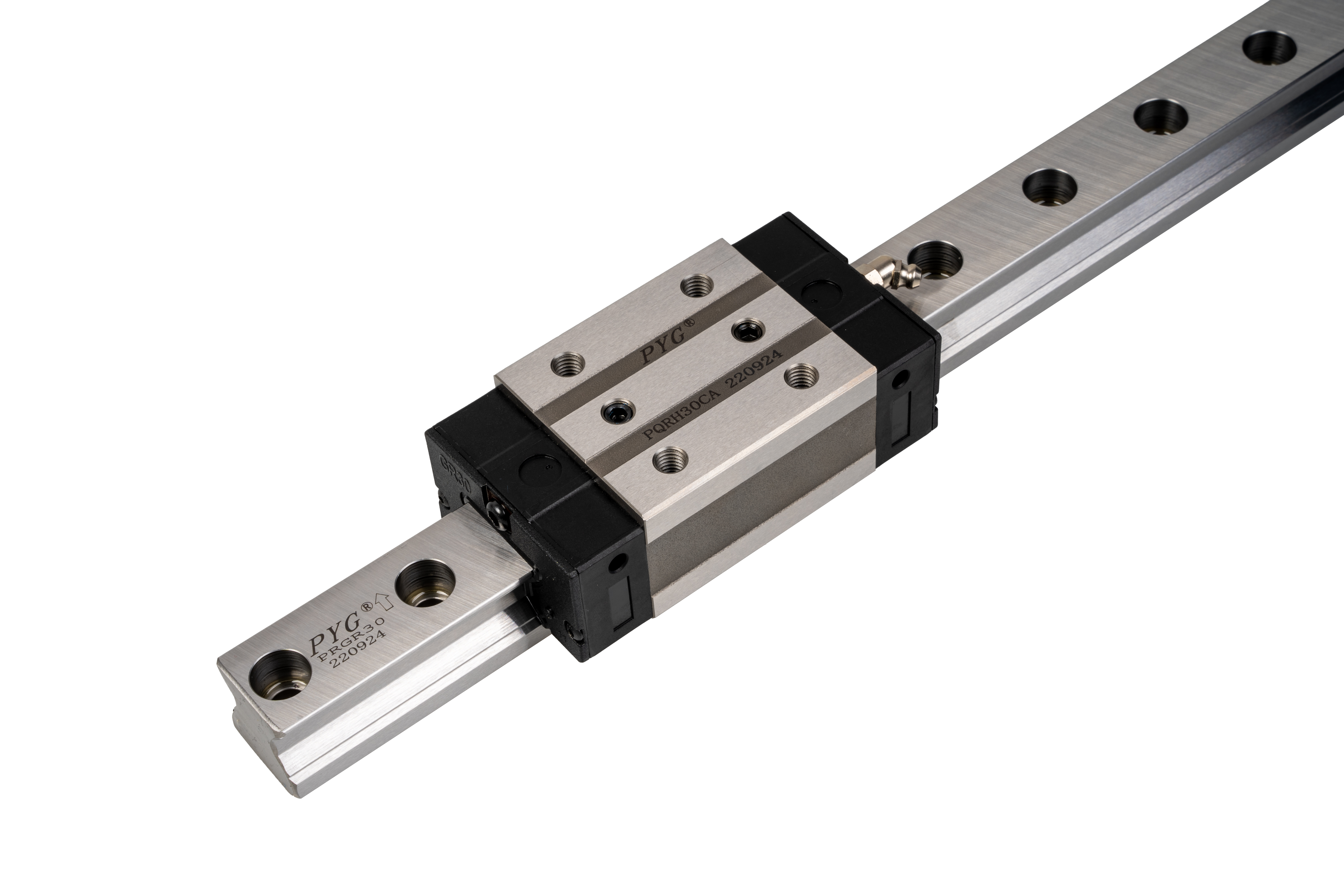

    roller type linear guideway has high heavy load bearing, not easily to deformed,





    linear guideway

    easy installation

    roller linear guide adopts roller arrangement, upgraded load capacity and easy installation.

    roller linear guide

    roller bearing guide rails

    square linear bearing adopts high quality bearing steel which is wear resistant, strong rigidity and heavy load bearing.

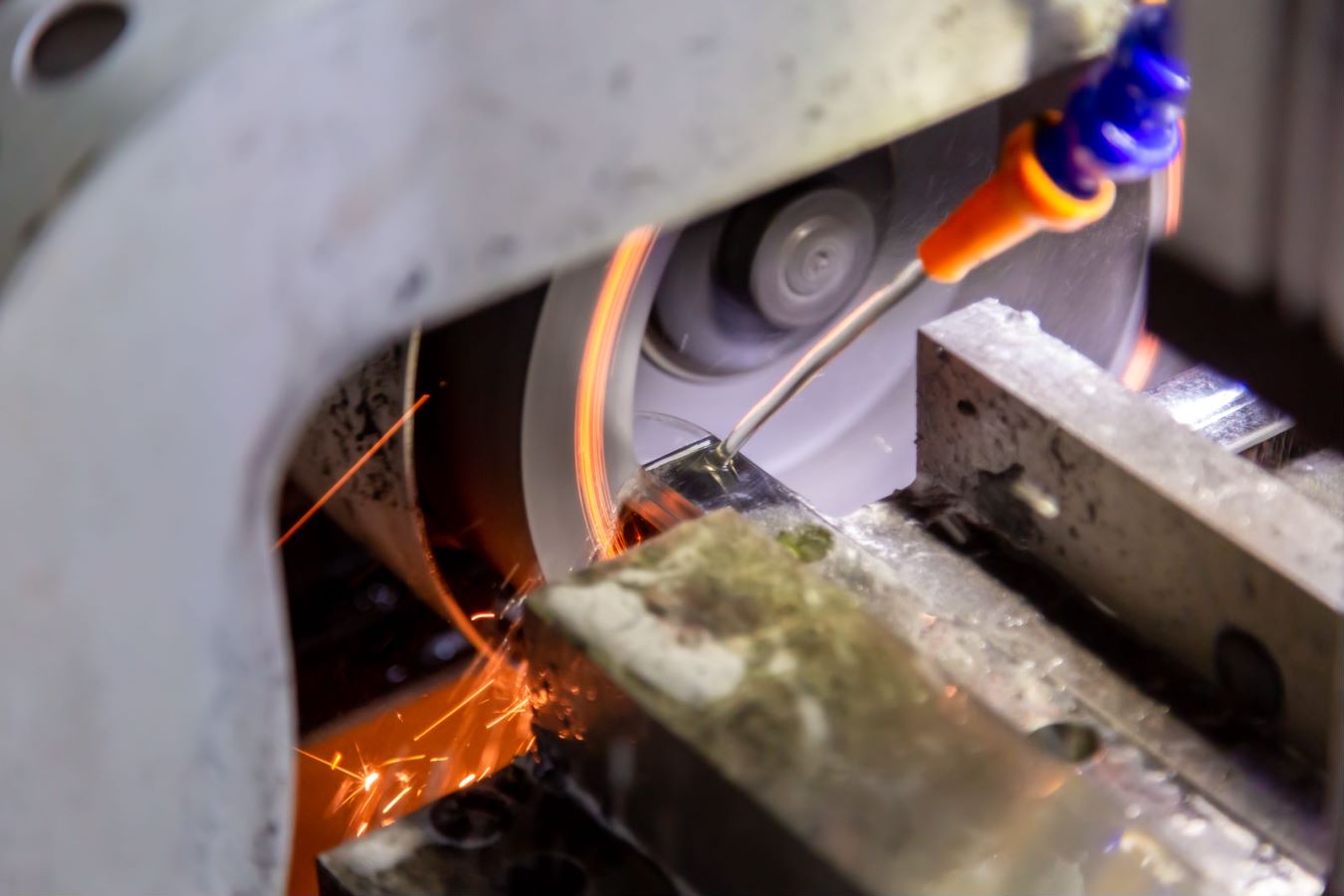

    lm guideways selection

    from customers' opinion, choose the better lm guideways need to consider many factors, such as if source factory, can keep on time delivery, if can track the linear ways process, and service etc. Believe me, You will not regret to choose PYG.

    tech-info

    Dimensions

    Complete dimensions for all linear roller rail systems size see below table or download our catalog:

    linear guideway 16_副本
    linear guideway 18
    Model Dimensions of Assembly (mm) Block size (mm) Dimensions of Rail (mm) Mounting bolt size for rail Basic dynamic load rating Basic static load rating weight
    Block Rail
    H N W B C L WR  HR  D   P   E   mm C (kN) C0(kN) kg Kg/m
    PRGH35CA 55 18 70 50 50 124 34 30.2 14 40 20 M8*25 57.9 105.2 1.57 6.06
    PRGH35HA 55 18 70 50 72 151.5 34 30.2 14 40 20 M8*25 73.1 142 2.06 6.06
    PRGL35CA 48 18 70 50 50 124 34 30.2 14 40 20 M8*25 57.9 105.2 1.57 6.06
    PRGL35HA 48 18 70 50 50 151.5 34 30.2 14 40 20 M8*25 73.1 142 2.06 6.06
    PRGW35CC 48 33 100 82 62 124 34 30.2 14 40 20 M8*25 57.9 105.2 1.75 6.06
    PRGW35HC 48 33 100 82 62 151.5 34 30.2 14 40 20 M8*25 73.1 142 2.40 6.06
    Odering Tips

    1. Before placing order, welcome to send us inquiry, to describe simply your requirements;

    2. Normal length of linear guideway from 1000mm to 6000mm, but we accept custom-made length;

    3. Block color is silver and black, if you need custom color, such as red, green, blue, this is available;

    4. We receive small MOQ and sample for quality test;

    5. If you want to become our agent, welcome to call us +86 19957316660 or send us email;
