PHGH35/PHGW35 precision recirculating linear bearings Steel linear rail sliding guideway

Short Description:

When a load is driven by a linear motion guideway, the frictional contact between the load and the bed desk is rolling contact. The coefficient of friction is only 1/50 of traditional contact, and the difference between the dynamic and static coefficient of friction is very small. Therefore, there would be no slippage while the load is moving.  PYG types of linear guides can achieve high precision linear motion.


  • Brand: PYG
  • Model Size: 35mm
  • Rail length: can be customized
  • Block Material: 20 CRmo
  • Sample: Available
  • Delivery time: 5-15 days
  • Precision level: C , H, P, SP, UP
  • Product Detail

    Product Tags

    product description

    Customized Heavy Duty Smooth Linear Motion Guide Rail with 35mm Linear Slider

    When a load is driven by a linear motion guideway, the frictional contact between the load and the bed desk is rolling contact. The coefficient of friction is only 1/50 of traditional contact, and the difference between the dynamic and static coefficient of friction is very small. Therefore, there would be no slippage while the load is moving.  PYG types of linear guides can achieve high precision linear motion.

    With a traditional slide, errors in accuracy are caused by the counter flow of the oil film. Insufficient lubrication causes wear between the contact surfaces, which become increasingly inaccurate. In contrast, rolling contact has little wear; therefore, machines can achieve a long life with highly accurate motion.

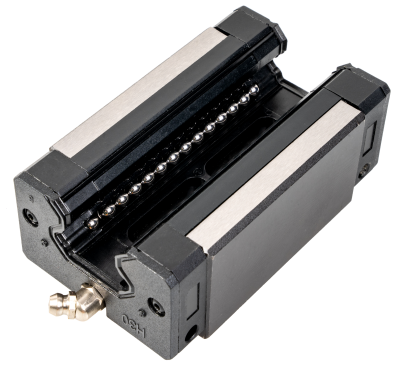

    linear motion

    steel linear rail length can be customized

    We can produce rail length based on customers' requirements, such as over 4m, we will use jointed rail which through end surface grinding with advanced equipment. Jointed rail should be installed by the arrow sign and ordinal number which is marked on the surface of each rail.

    For matched pair, jointed rails, the jointed positions should be staggered. This will avoid accuracy problems due to discrepancies between the 2 rails.

    jointed rail

    PHGH35mm sliding guideways information

    Following is 35mm model data information, you can check the size if suitable for your machine or you can send us your drawing for size, bottom is our complete specification table or you also can download pdf file from our site, we can produce the linear guide pair for your side, our delivery time based on quantities, for sample, this is available for quality test before bulk order. Welcome to contact us Now for details !

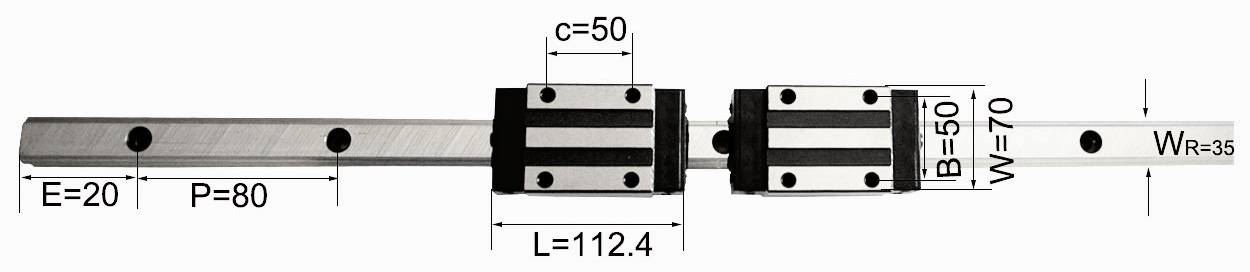

    linear guide 35mm
    assembly height (block + rail) 55mm diameter of rail holes 14mm
    height of rail 29mm bolt size of block M8*12
    weight of block(kg) 1.45 bolt size of rail M8*25
    weight of rail(kg/m) 6.3 length of rail custom

    Features of  smooth linear  guide

    1. Self-aligning capability

    By design, the circular-arc groove has contact points at 45 degrees,PHG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points.self-aligning capability, high accuracy and smooth operation can be obtained with easy installation.

    2. Interchangeability

    Because of precision dimensional control, the dimensional tolerance of  linear motion can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance, and a retainer is added to prevent the balls from falling out when the removed from the rail.

    3. High rigidity in all directions

    Because of  the four-row  design, the PHG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions, furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.

    tech-info

    Technical Parameter

    linear guide rail18
    linear guide rail19
    Model Dimensions of Assembly (mm) Block size (mm) Dimensions of Rail (mm) Mounting bolt size for rail Basic dynamic load rating Basic static load rating weight
    Block Rail
    H N W B C L WR  HR  D   P   E   mm C (kN) C0(kN) kg Kg/m
    PHGH35CA 55 18 70 50 50 112.4 34 29 14 80 20 M8*25 49.52 69.16 1.45 6.30
    PHGH35HA 55 18 70 50 72 138.2 34 29 14 80 20 M8*25 60.21 91.63 1.92 6.30
    PHGW35CA 48 33 100 82 62 112.4 34 29 14 80 20 M8*25 49.52 69.16 1.56 6.30
    PHGW35HA 48 33 100 82 62 138.2 34 29 14 80 20 M8*25 60.21 91.63 2.06 6.30
    PHGW35CB 48 33 100 82 82 112.4 34 29 14 80 20 M8*25 49.52 69.16 1.56 6.30
    PHGW35HB 48 33 100 82 82 138.2 34 29 14 80 20 M8*25 60.21 91.63 2.06 6.30
    PHGW35CC 48 33 100 82 62 112.4 34 29 14 80 20 M8*25 49.52
    69.16 1.56 6.30
    PHGW35HC 48 33 100 82 62 138.2 34 29 14 80 20 M8*25 60.21 91.63 2.06 6.30



    Odering Tips

    1. Before placing order, welcome to send us inquiry, to describe simply your requirements;

    2. Normal length of linear guideway from 1000mm to 6000mm, but we accept custom-made length;

    3. Block color is silver and black, if you need custom color, such as red, green, blue, this is available;

    4. We receive small MOQ and sample for quality test;

    5. If you want to become our agent, welcome to call us +86 19957316660 or send us email;

    welcome to contact us to know more details!
