PHGW30/PHGH30 Linear bearing slide rails steel Lm guide block

Short Description:

PHGW/PHGH series round ball linear guide rail – heavy load balls type linear guide which is easy disassembly and assembly, the slide surface has oxidation antirust treatment, stable and reliable operation. This square flange linear bearing adopts thicker raw material with high rigidity and long service life.


  • Model Size: 30mm
  • Brand: PYG
  • Linear Rail Material: S55C
  • Linear Block Material: 20 CRmo
  • Sample: available
  • Delivery time: 5-15 days
  • Precision level: C , H, P, SP, UP
  • Product Detail

    Product Tags

    product description

    PHGW Steel Linear Rail Definition

    PHGW round ball linear guide rail -- heavy load balls flange type linear guide which is easy disassembly and assembly, the flange slide surface has oxidation antirust treatment, stable and reliable operation. This square flange linear bearing adopts thicker raw material with high rigidity and long service life.

    Linear Bearing Slide Rails

    Many linear bearing sizes from model 15 ~ 65 , gothic four-point contact design is adopted, smooth pull and push, stable sliding, linear bearing guide rail length can be customized, the longest length can reach 6 meters. Linear bearing block use high precision and high hardness steel balls, low friction, low noise and low resistance.

    img-1


    Name

    Flange block

     img-3

    Material

    20 CRmo

    Mounting type

    Top, bottom or both

    Steel balls

    Has balls retainer to avoid balls falling off

    Advantage

    self-aligning,high rigidity,heavy load,high precision,smooth operation

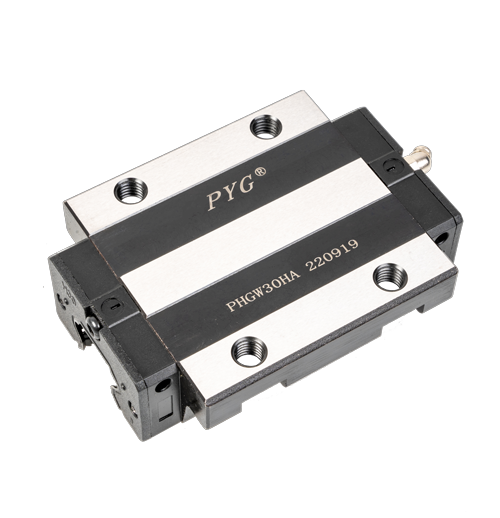

    lm Guide Block

    lm guide widely used in construction machinery, aerospace engineering and precision instruments etc., compared to other similar types of linear guides, PYG® brand smooth linear motion has more precision and better quality characteristic.



    Lm Guide Rail with Slide Block

    1. High efficient and wear-resistant

    2. High precision and accuracy

    3. High load and durable

    4. Full specification

    5. Full dust sealing and smooth sliding

    linear bearing guide rail

    PYG® adopts high rigidity steel bearing raw material, length can be custom cut, easy to install the block, can bear high load

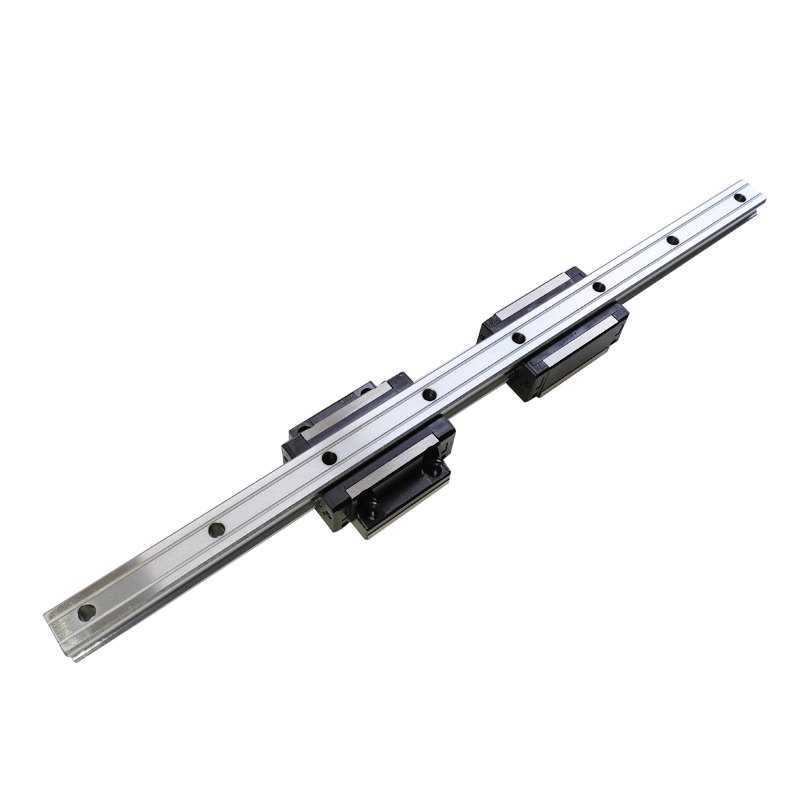

    linear guide rail4

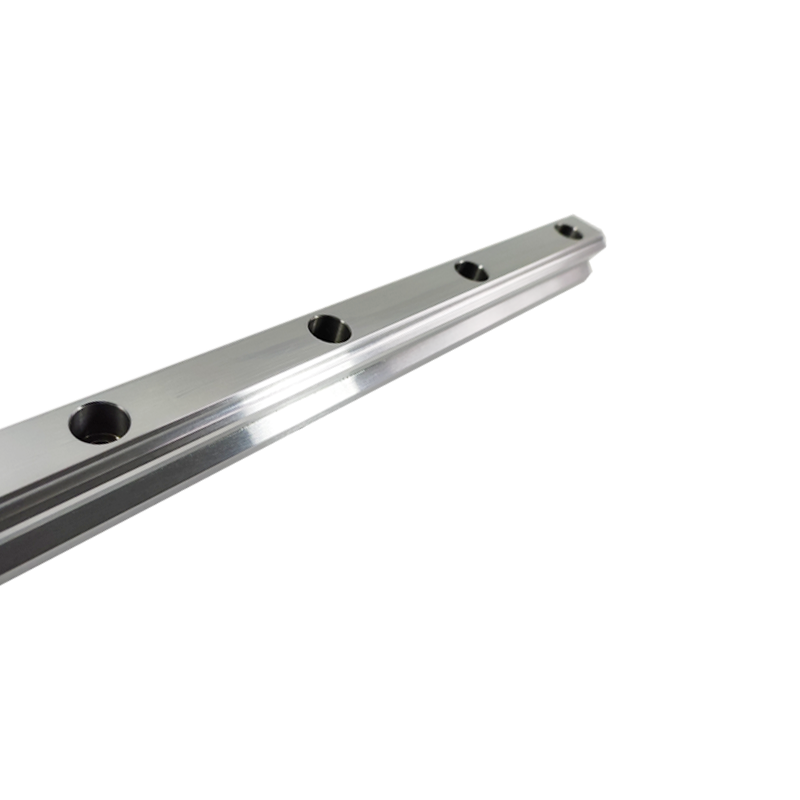

    linear guide rail7

    Strict Checking

    slide linear guide block has been tested strictly before installation, inner screw holes are clean and smooth.

    Rail Checking

    precision slide rails checking, professional measurement, accuracy data, allows you to use more easy.

    For PHGW-CA / PHGW-HA series, we can know the definition of each code as follows:

    Take size 30 for example:

    linear guideway

    PHGW-CA/PHGW-HA block and rail type

    Type

    Model

    Block Shape

    Height (mm)

    RaiMounting from Top

    RaiLength (mm)

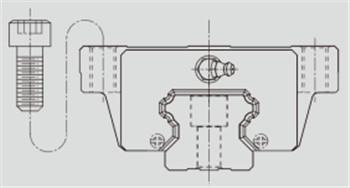

    Flange block PHGW-CAPHGW-HA img-4

    24

    90

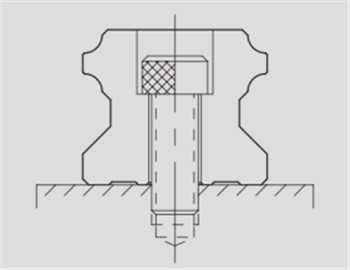

     img-5

    100

    4000

    Application

    • Machine centers
    • NC lathe
    • Grinding machines
    • Heavy cutting machines
    • Automation devices
    • Transportation equipment
    • Measuring equipment
    • Devices requiring high positionaaccuracy
    tech-info
    linear guideway13
    linear guide rail16
    Model Dimensions of Assembly (mm) Block size (mm) Dimensions of Rail (mm) Mounting bolt size for rail Basic dynamic load rating Basic static load rating weight
    Block Rail
    H N W B C L WR  HR  D   P   E   mm C (kN) C0(kN) kg Kg/m
    PHGH30CA 45 16 60 40 40 97.4 28 26 14 80 20 M8*25 38.74 52.19 0.88 4.47
    PHGH30HA 45 16 60 40 60 120.4 28 26 14 80 20 M8*25 47.27 69.16 1.16 4.47
    PHGW30CA 42 31 90 72 52 97.4 28 26 14 80 20 M8*25 38.74 52.19 1.09 4.47
    PHGW30HA 42 31 90 72 52 120.4 28 26 14 80 20 M8*25 47.27 69.16 1.44 4.47
    PHGW30CB 42 31 90 72 52 97.4 28 26 14 80 20 M8*25 38.74 52.19 1.09 4.47
    PHGW30HB 42 31 90 72 52 120.4 28 26 14 80 20 M8*25 47.27 69.16 1.44 4.47
    PHGW30CC 42 31 90 72 52 97.4 28 26 14 80 20 M8*25 38.74 52.19 1.09 4.47
    PHGW30HC 42 31 90 72 52 120.4 28 26 14 80 20 M8*25 47.27 69.16 1.44 4.47
    Odering Tips

    1. Before placing order, welcome to send us inquiry, to describe simply your requirements;

    2. Normal length of linear guideway from 1000mm to 6000mm, but we accept custom-made length;

    3. Block color is silver and black, if you need custom color, such as red, green, blue, this is available;

    4. We receive small MOQ and sample for quality test;

    5. If you want to become our agent, welcome to call us +86 19957316660 or send us email.
