Module1,1.5,2,2.5 rack and pinion

Short Description:


  • Material: C45, 40Cr, 20CrMnTi, 42CrMo, Copper, Stainless steel
  • module: M0.5, M0.8, M1.0, M1.5,M2.0,M2.5,M3.0, etc.
  • Standard or Nonstandard: Nonstandard
  • Length: can be customized
  • Heat treatment: High frequency, Quenching/Carburization, Teeth hardened
  • Density Precision: C7、C5、C3
  • Product Detail

    Product Tags

    High precision rack and pinion

    • PYG manufacturing Base is equipped with leading domestic NC machining equipment
    • Fully modern equipment and management system
    • Strict control of production and manufacturing links
    • Leading international technical standards
    • Fine process manufacturing to ensure that products have the world's leading level

    The rack is a transmission component, mainly used to transfer power, and generally matched with the gear into the rack and pinion drive mechanism, the reciprocating linear motion of the rack into the rotary motion of the gear or the rotary motion of the gear into the reciprocating linear motion of the rack. The product is suitable for long distance linear motion, high  capacity, high precision, durable, low noise and so on.

    The application of rack:

    mainly used in various mechanical transmission systems, like Automation Machine, CNC Machine, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works and so on.

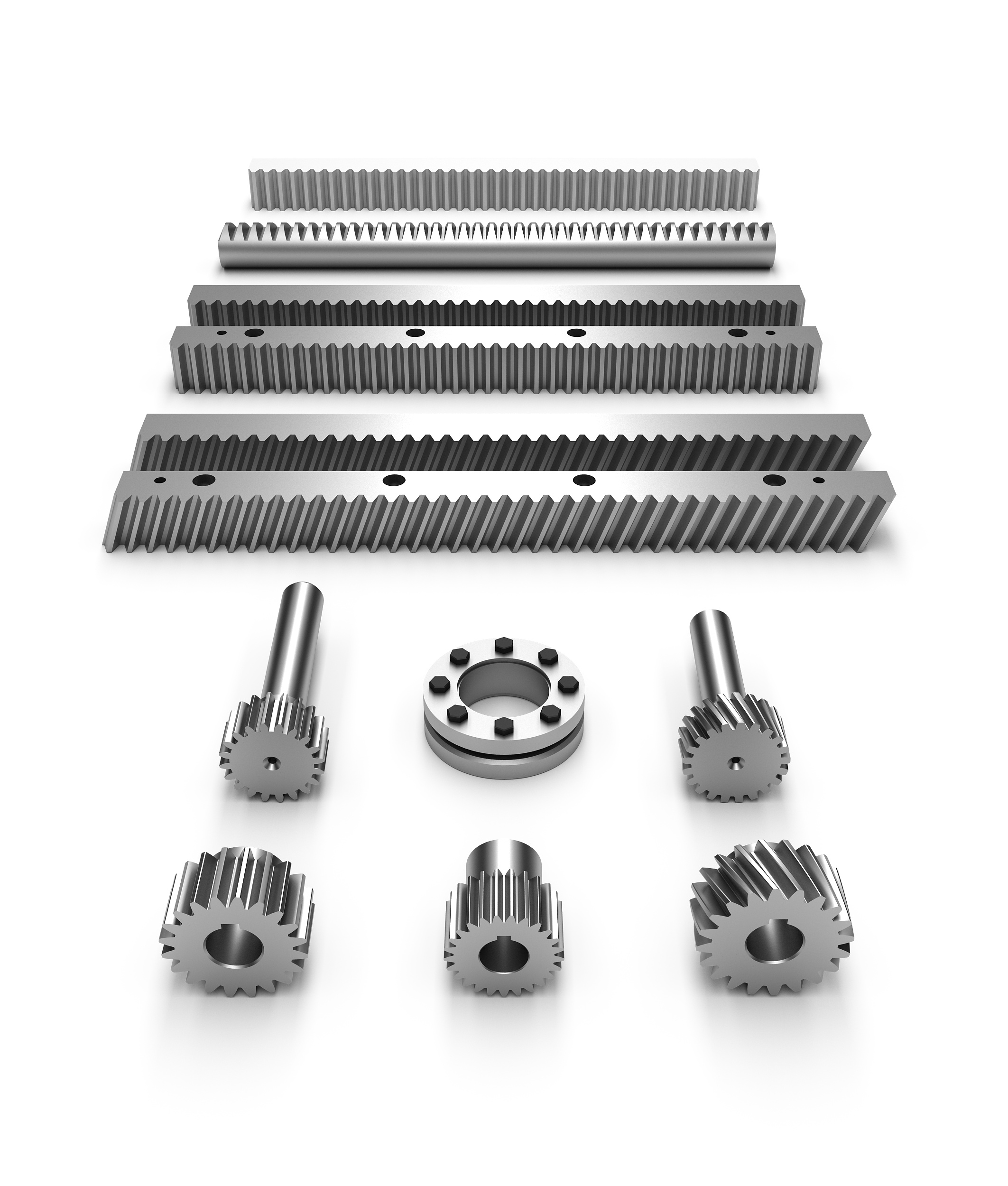

    rack and pinion-5

    Specifications of gear rack and pinion

    Helical gear rack:
    Helical angle: 19°31’42’
    Pressure angle: 20°
    Precision grade: DIN6/ DIN7
    Hardness treatment:Tooth surface high frequency HRC48-52°
    Production process:four side grinding,tooth surface grinding.

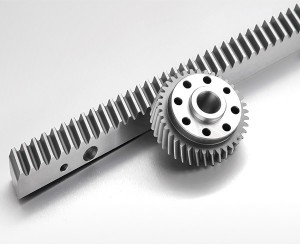

    Helical gear rack
    Straight gear rack:
    Pressure angle: 20°
    Precision grade: DIN6/ DIN7
    Hardness treatment:Tooth surface high frequency HRC48-52°
    Production process:four side grinding,tooth surface grinding.

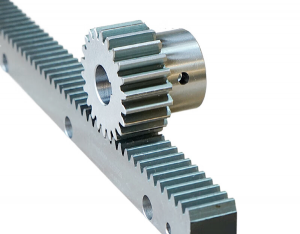

    b67bc3f58cd3fff0ed93582e03a98f6

    Rack Assembly

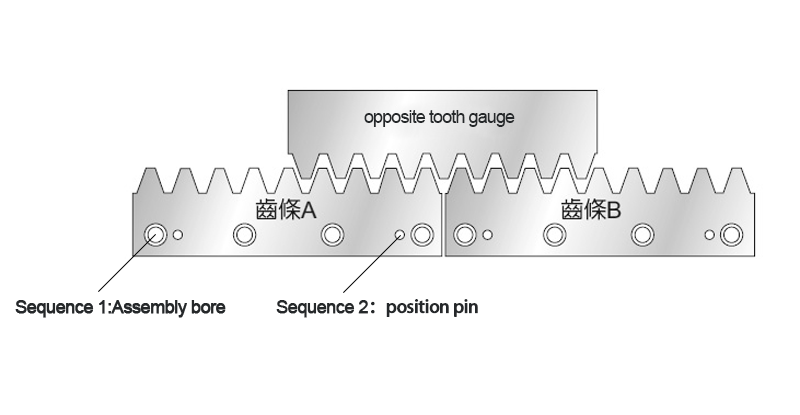

    To assemble connected racks more smoothly, 2 ends of a standard rack would add half tooth which is convenient for next half tooth of next rack to be connected to a complete tooth. The following drawing shows how 2 racks connect and tooth gauge can control pitch position accurately.

    With regards to connection of helical racks, it can be connected accurately by opposite tooth gauge.

    1. When connecting racks, we recommend lock bores on the sides of rack first, and lock bores by the sequence of the foundation. With assembling the tooth gauge, pitch position of racks can be assembled accurately and completely.

    2. Last, lock the position pins on 2 sides of rack; the assembly is completed.

    assembly

    Technical Parameter

    Straight Teeth System

    ① Precision grade:  DIN6h25

    ② Tooth hardness: 48-52°

    ③ Tooth processing: Grinding

    ④ Material: S45C

    ⑤ Heat treatment: High frequency

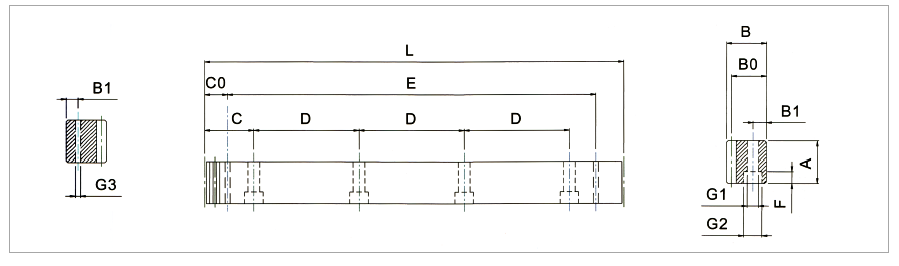

    drawing
    model L Teeth NO. A B B0 C D Hole NO. B1 G1 G2 F C0 E G3
    15-05P 499.51 106 17 17 15.5 62.4 124.88 4 8 6 9.5 7 29 441.5 5.7
    15-10P 999.03 212 17 17 15.5 62.4 124.88 8 8 6 9.5 7 29 941 5.7
    20-05P 502.64 80 24 24 22 62.83 125.66 4 8 7 11 7 31.3 440.1 5.7
    20-10P 1005.28 160 24 24 22 62.83 125.66 8 8 7 11 7 31.3 942.7 5.7
    30-05P 508.95 54 29 29 26 63.62 127.23 4 9 10 15 9 34.4 440.1 7.7
    30-10P 1017.9 108 29 29 26 63.62 127.23 8 9 10 15 9 34.4 949.1 7.7
    40-05P 502.64 40 39 39 35 62.83 125.66 4 12 10 15 9 37.5 427.7 7.7
    40-10P 1005.28 80 39 39 35 62.83 125.66 8 12 10 15 9 37.5 930.3 7.7
    50-05P 502.65 32 49 39 34 62.83 125.66 4 12 14 20 13 30.1 442.4 11.7
    50-10P 1005.31 64 49 39 34 62.83 125.66 8 12 14 20 13 30.1 945 11.7
    60-05P 508.95 27 59 49 43 63.62 127.23 4 16 18 26 17 31.4 446.1 15.7
    60-10P 1017.9 54 59 49 43 63.62 127.23 8 16 18 26 17 31.4 955 15.7
    80-05P 502.64 20 79 71 71 62.83 125.66 4 25 22 33 21 26.6 449.5 19.7
    80-10P 1005.28 40 79 71 71 62.83 125.66 8 25 22 33 21 26.6 952 19.7

    Our Service:
    1. Competitive price
    2. High quality products
    3. OEM service
    4. 24 hours online service
    5. Professional technical service
    6. Sample available
