Precision Metal Parts Linear Shaft Support in 8mm 10mm 15mm 25mm 30mm 35mm 40mm Sizes of Linear Shaft Holder

Short Description:

Optical axis is a mechanical component used to support rotating parts or as a rotating part itself, playing a role in transmitting motion, torque, etc. in machinery. The optical axis is generally cylindrical, but there are also hexagonal and square shapes.


  • Brand: PYG
  • Feature: Stainless Steel
  • Sample: Available
  • Rail Length: Customized(500mm-6000mm)
  • Delivery Time: 7~20 days
  • Feature: Excellent corrosion resistance
  • Material: SUJ2 ; SUS440C; SUS304; Stainless steel
    • Whatsapp

    Product Detail

    Product Tags

    Product Overview

    Optical axis is a mechanical component used to support rotating parts or as a rotating part itself, playing a role in transmitting motion, torque, etc. in machinery. The optical axis is generally cylindrical, but there are also hexagonal and square shapes.

    Optical axis Features
    1. High hardness.
    2. High precision.
    3. Corrosion resistance.
    4. Wear resistance.
    5.Low Friction.

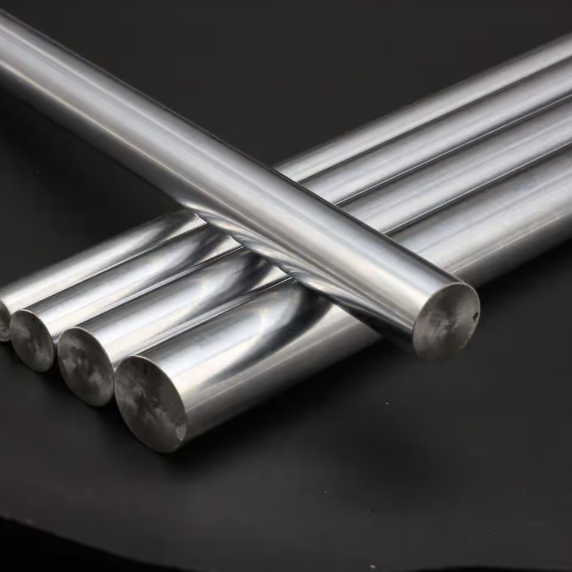

    shaft7

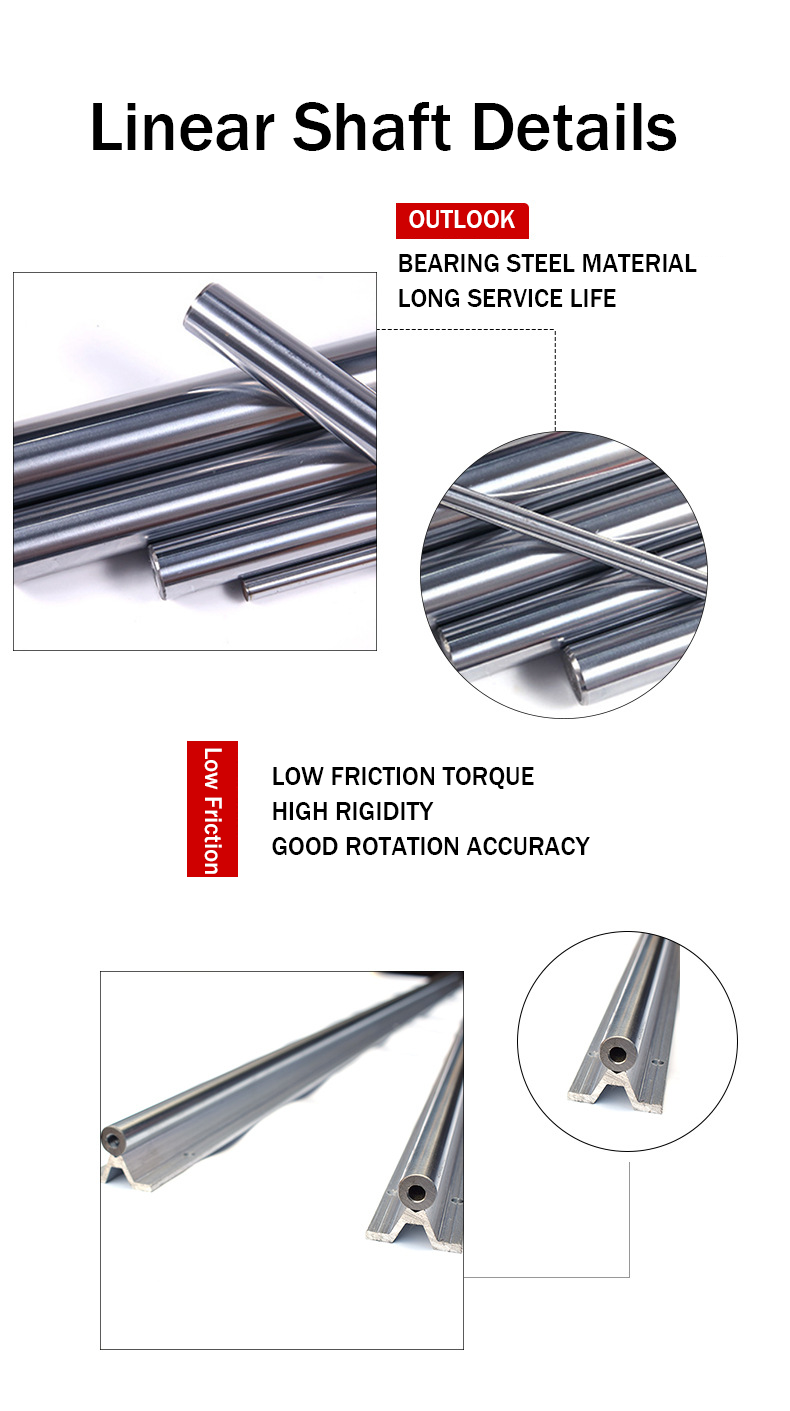

    shaft8

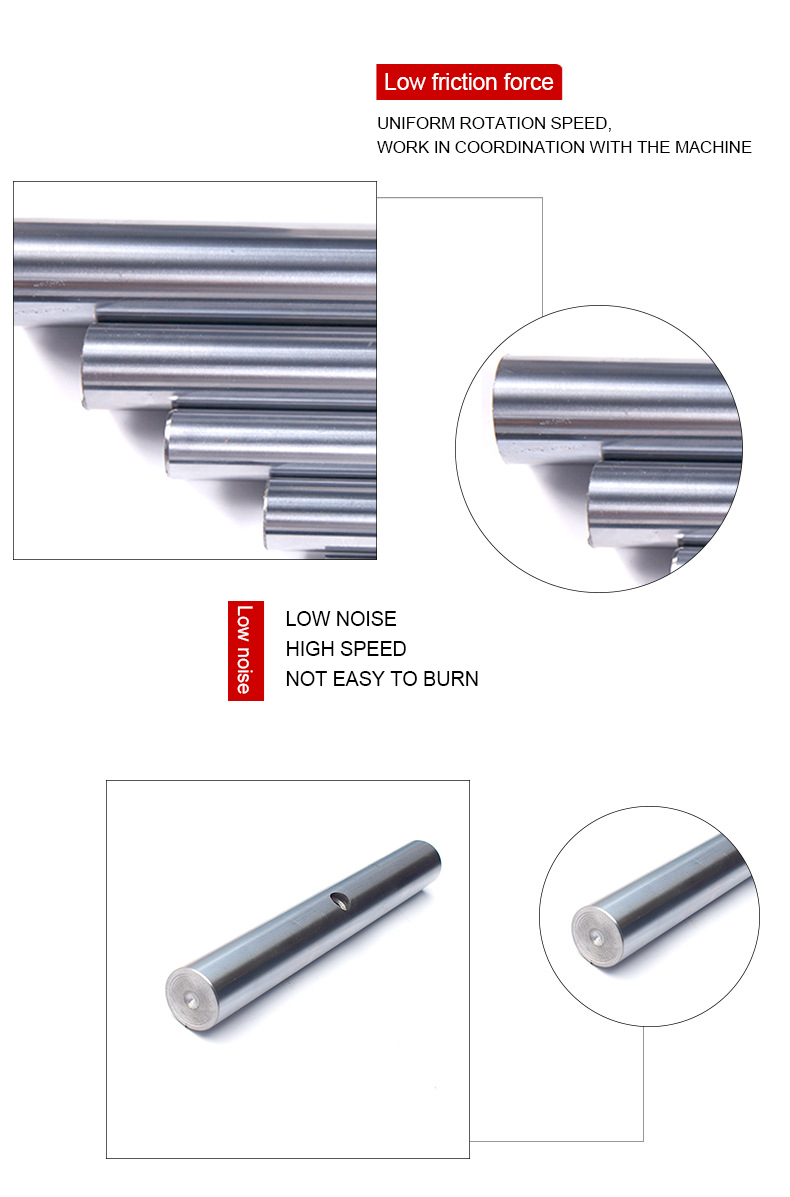

    shaft11

    Technical information

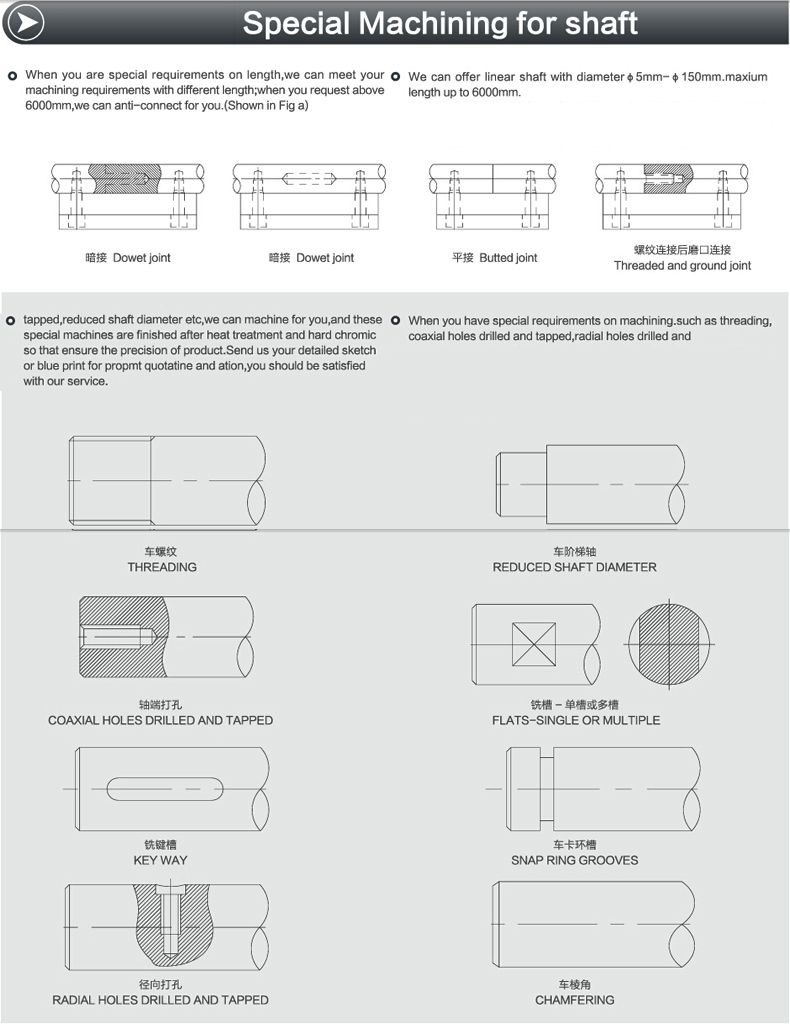

    shaft12

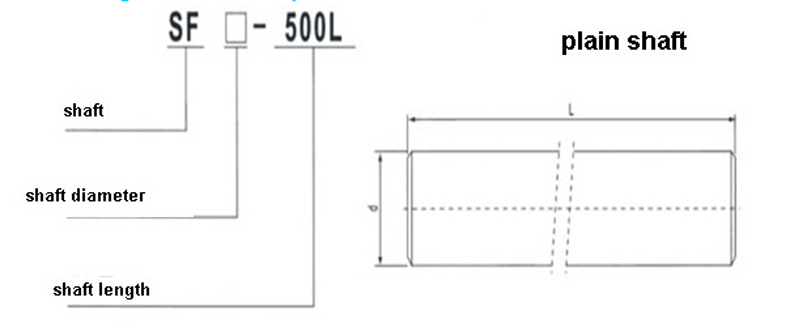

     Name designation for linear shaft:




    Custom CNC Machining Parts of Most Materials
    Hardness HRC58-62
    Tolerance丨Surface Roughness +/-0.005 - 0.01mm 丨 Ra0.2 - Ra3.2（Custonize avaiable）
    Straightness in 0.10mm/meter
    Materials Avaiable Aluminum, Copper, Stainless steel, Iron, PE, PVC, ABS, etc.
    Quotation According to your drawing
    Processing CNC Turning, Milling, drilling, auto lathe, tapping, bushing, surface treatment, etc.
    Special maching Can do simple and diffcult maching of the shaft
    Our Advantages 1.) 100% QC quality inspection before delivery, and can provide qualityinspection form.
    2.) 20+ years of experience in linear motion system and have a senior design team to offer perfect modification suggestions.

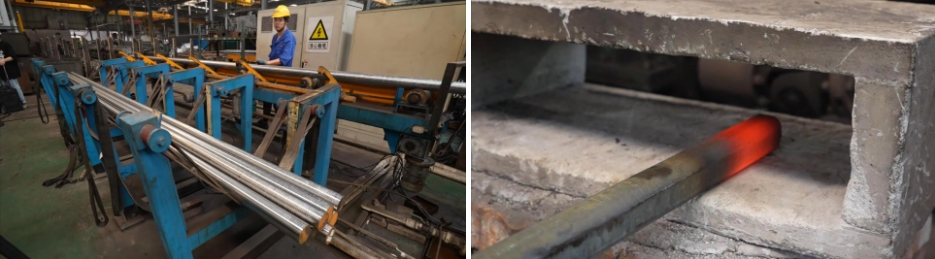

    Shaft hardness(HRC) process:

    shaft9

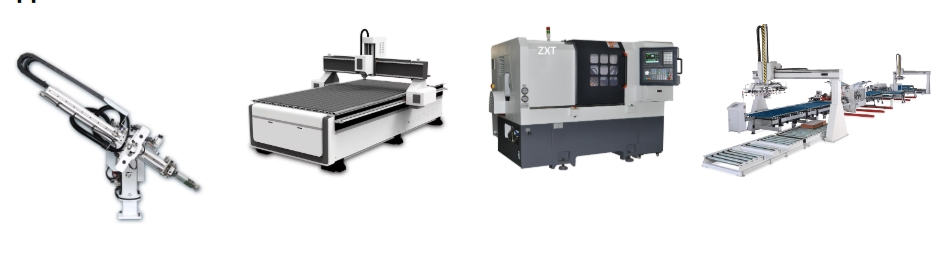

    Applications of linear shaft

    shaft10
    FAQ
    Q:Are you manufacturer? A:Yes
    Q: How long is your delivery time? A: 3-5 days for regular models,7-10 days for custom models
    Q: Can you provide samples ? is it free or extra ?A:We can send the sample within two days upon receipt of the sample fee with the freight collected, and the sample charge will be deducted in the official order.
    Q: What is your terms of payment ? A: Payment≤1000 USD, 100% in advance. Payment≥1000 USD, 30% T/T in advance ,balance before shipment.
    If you have another question, pls feel free to contact us.
