PHGH45/PHGW45 self aligning linear bearing smooth linear motion rail square bearing linear guide

Short Description:

Commonly used sliders have two types: flange type, and square type. The former is a little lower,but more wider, and the mounting hole is a threaded hole, while the latter is a little higher and narrower, and the mounting hole is a blind thread hole. Both have short type, standard type and elongated type, the main difference is that the length of the slider body is different, of course, the hole spacing of the mounting hole may also be different, most short type slider only has 2 mounting holes.


  • Brand: PYG
  • Model Size: 45mm
  • Block Material: 20 CRmo
  • Sample: Available
  • Delivery time: 5-15 days
  • Precision level: C , H, P, SP, UP
  • Product Detail

    Product Tags

    product description

    Linear Guide Slider Bearings

    Commonly used sliders have two types: flange type, and square type. The former is a little lower,but more wider, and the mounting hole is a threaded hole, while the latter is a little higher and narrower, and the mounting hole is a blind thread hole. Both have short type, standard type and elongated type, the main difference is that the length of the slider body is different, of course, the hole spacing of the mounting hole may also be different, most short type slider only has 2 mounting holes. The number of sliding blocks should be determined by the user through calculation. Generally, we only recommend one: as few as can be carried and as many as can be installed. The type and number of sliding blocks and the width of sliding rails constitute the three elements of load size.

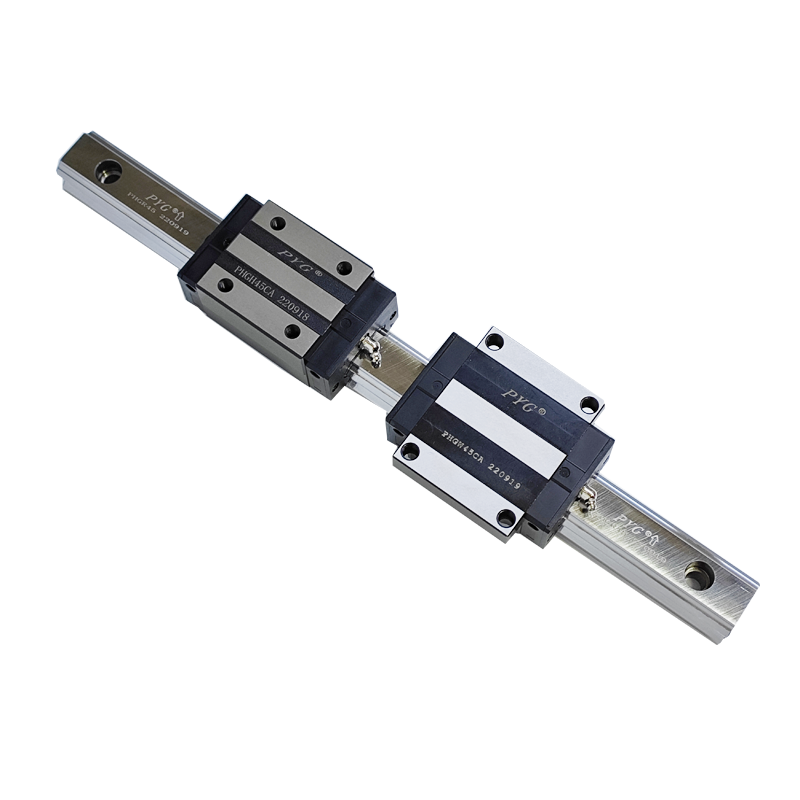

    guideway6

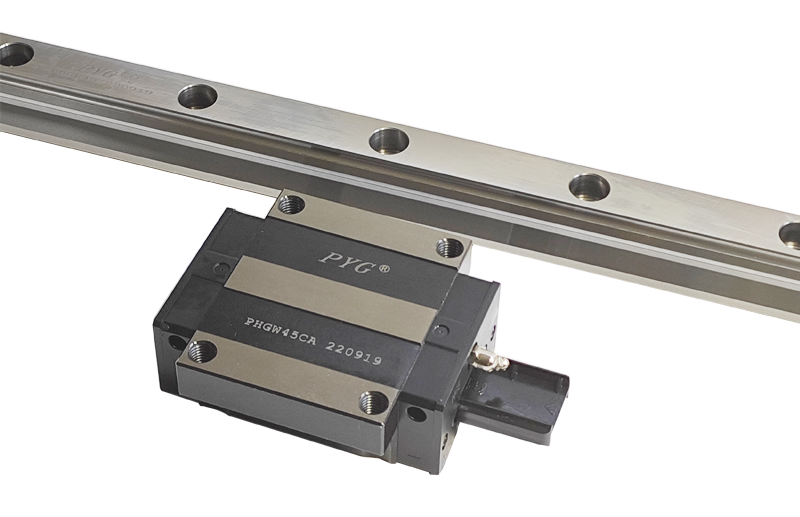

    guideway10-1

    Linear guides, also known as linear guideway, sliding guides and linear slides, including guide rail and sliding block, it is used to support and guide the moving parts to make reciprocating linear motion in a given direction. Mainly used in high-precision or high-speed linear reciprocating motion applications, can bear a certain torque, and can achieve high-precision linear motion under high load.

    Have four direction of features, and automatic adjust load of heart function, can absorb the installation, a precision assembly error of appeal. High speed, high load, high rigidity with precision turn concept has become the future development trend of industrial products around the world, HIWIN four circumferentially overweight load linear slide rail based on this concept, namely, development of the product.

    tech-info

    Technical parameter of standard linear guide

    If you need the elongated slider, please tell us the length you need when purchasing.

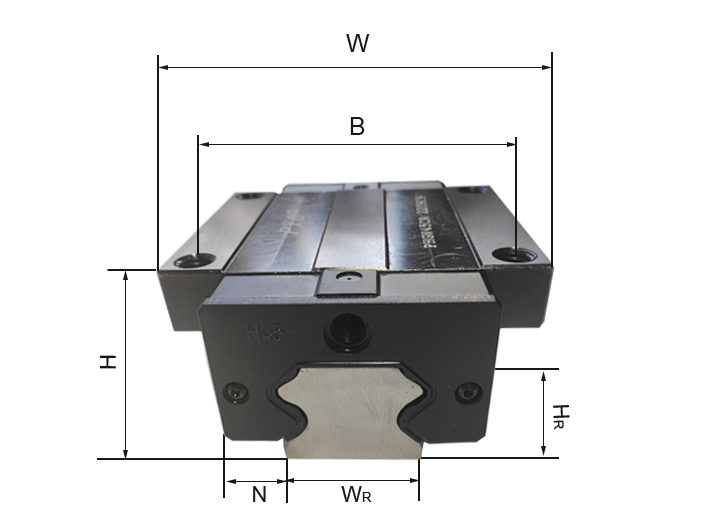

    guideway15_副本

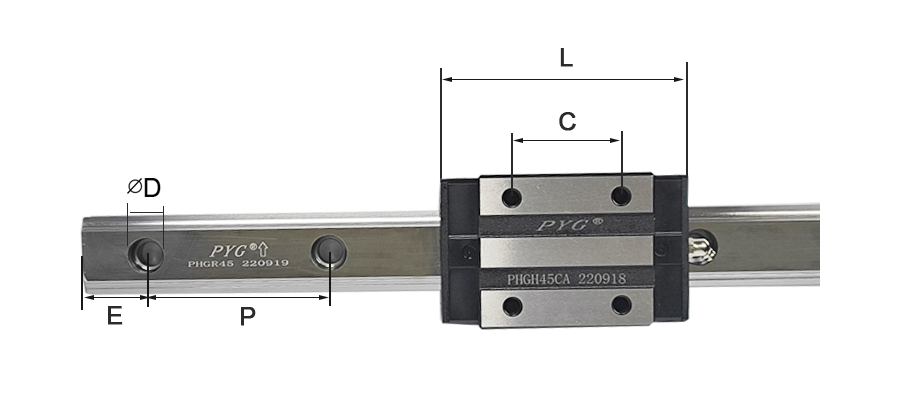

    guideway16
    Model Dimensions of Assembly (mm) Block size (mm) Dimensions of Rail (mm) Mounting bolt size for rail Basic dynamic load rating Basic static load rating weight
    Block Rail
    H N W B C L WR  HR  D   P   E   mm C (kN) C0(kN) kg Kg/m
    PHGH45CA 70 20.5 86 60 60 139.4 45 38 20 105 22.5 M1235 77.57 102.71 2.73 10.41
    PHGH45HA 70 20.5 86 60 80 171.2 45 38 20 105 22.5 M12*35 94.54 136.45 3.61 10.41
    PHGW45CA 60 37.5 120 100 80 139.4 45 38 20 105 22.5 M12*35 77.57 102.71 2.73 10.41
    PHGW45HA 60 37.5 120 100 80 171.2 45 38 20 105 22.5 M12*35 94.54 136.46 3.61 10.41
    PHGW45CB 60 37.5 120 100 80 139.4 45 38 20 105 22.5 M12*35 77.57 102.71 2.73 10.41
    PHGW45HB 60 37.5 120 100 80 171.2 45 38 20 105 22.5 M12*35 94.54 136.46 3.61 10.41
    PHGW45CC 60 37.5 120 100 80 139.4 45 38 20 105 22.5 M12*35 77.57
    102.71 2.73 10.41
    PHGW45HC 60 37.5 120 100 80 171.2 45 38 20 105 22.5 M12*35 94.54 136.46 3.61 10.41
    Odering Tips

    1. Before placing order, welcome to send us inquiry, to describe simply your requirements;

    2. Normal length of linear guideway from 1000mm to 6000mm, but we accept custom-made length;

    3. Block color is silver and black, if you need custom color, such as red, green, blue, this is available;

    4. We receive small MOQ and sample for quality test;

    5. If you want to become our agent, welcome to call us +86 19957316660 or send us email
